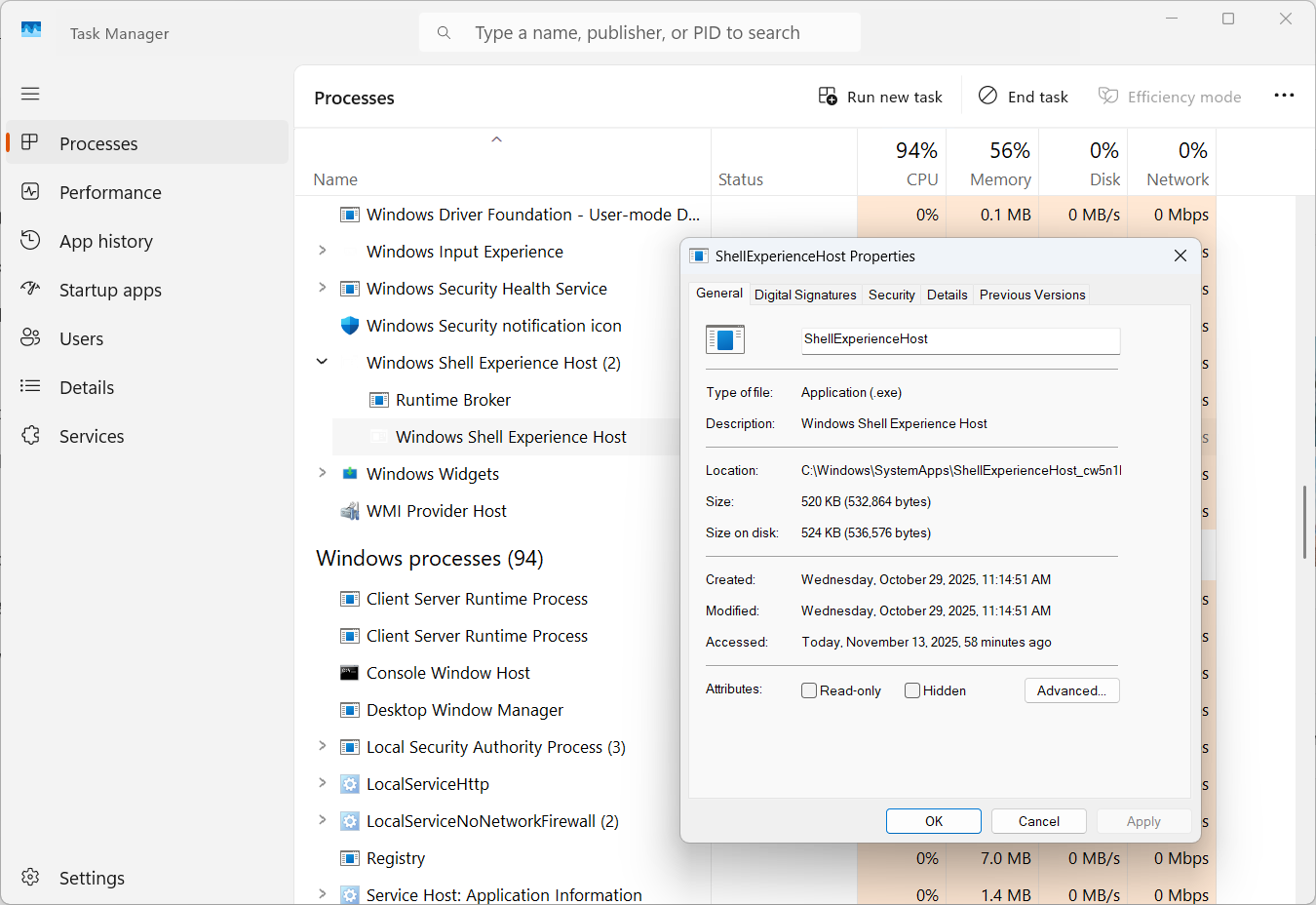

Windows Shell Experience Host (ShellExperienceHost.exe) High CPU and Memory Usage: Here’s How to Fix It

Windows Shell Experience Host (ShellExperienceHost.exe) is a core Windows process that manages the visual layer of the operating system. It’s responsible for rendering the Start menu, Action Center, taskbar transparency, background images, lock screen animations, and other UI components. Under normal conditions, it uses very little CPU and only a modest amount of memory.

However, when something misbehaves—such as corrupt theme files, outdated graphics drivers, excessive background apps, a misconfigured system setting, or damaged system files—ShellExperienceHost.exe may begin consuming unusually high CPU or memory. This can slow down the system, cause UI lags, shorten battery life, and create perception of instability.

This tutorial walks you through practical steps for diagnosing and fixing ShellExperienceHost.exe resource problems. It offers quick triage for users in a hurry, detailed procedures for thorough troubleshooting, and preventive measures to help ensure the issue doesn’t return.

Quick Fixes for a Start

Before diving into deeper investigation, it’s often helpful to try a few fast remedies that immediately reset parts of the Windows UI. These quick actions can temporarily or permanently resolve ShellExperienceHost.exe spikes without requiring advanced troubleshooting.

1. Restart Windows Explorer
   • Press Ctrl + Shift + Esc to open Task Manager.
   • Locate Windows Explorer.
   • Select Restart.
2. Terminate and relaunch ShellExperienceHost.exe
   • Open Task Manager.
   • Find ShellExperienceHost.exe.
   • Click End Task (Windows will restart it automatically).
3. Switch to a default Windows theme
   • Right-click desktop and choose Personalize.
   • Select Windows (Light) or Windows (Dark).
4. Reboot the system
   • A simple reboot can be effective if the issue is caused by transient UI glitches.

Prerequisites

Before performing more in-depth procedures, make sure your system is prepared. This ensures smoother troubleshooting and reduces the risk of unintended changes.

1. Administrative rights on the system.
2. A stable Internet connection (for downloading drivers or updates).
3. Optional but recommended:
   • A restore point.
   • System file backup.
   • Latest GPU driver installers from the vendor website.

Step-by-Step Guide

1. Check for Corrupt Themes or Visual Effects

Visual components often influence the behavior of Windows Shell Experience Host. These steps help rule out corrupt themes or misconfigured effects that may be overloading the UI renderer.

1.1 Switch to a Windows default theme

• Go to Settings > Personalization > Themes.
• Select a built-in theme.
• Check CPU/memory usage in Task Manager.

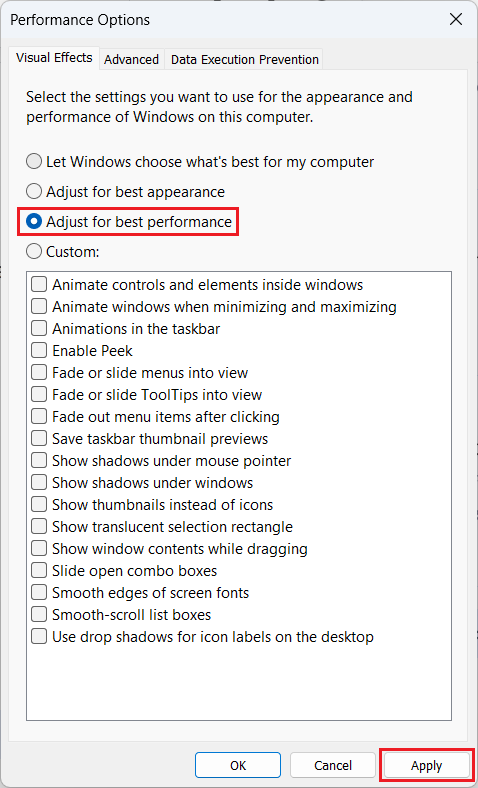

1.2 Disable excessive visual effects

• Open System Properties and go to Advanced system settings.
• Under Performance, click Settings.
• Choose Adjust for best performance.
• If the usage normalizes, re-enable effects one by one.

2. Update or Reinstall Graphics Drivers

ShellExperienceHost.exe relies heavily on GPU acceleration. Outdated or malfunctioning drivers are one of the most common culprits behind persistent CPU or memory spikes.

2.1 Update drivers from Windows Update

• Open Settings > Windows Update.
• Click Check for updates and install any available driver or cumulative updates.

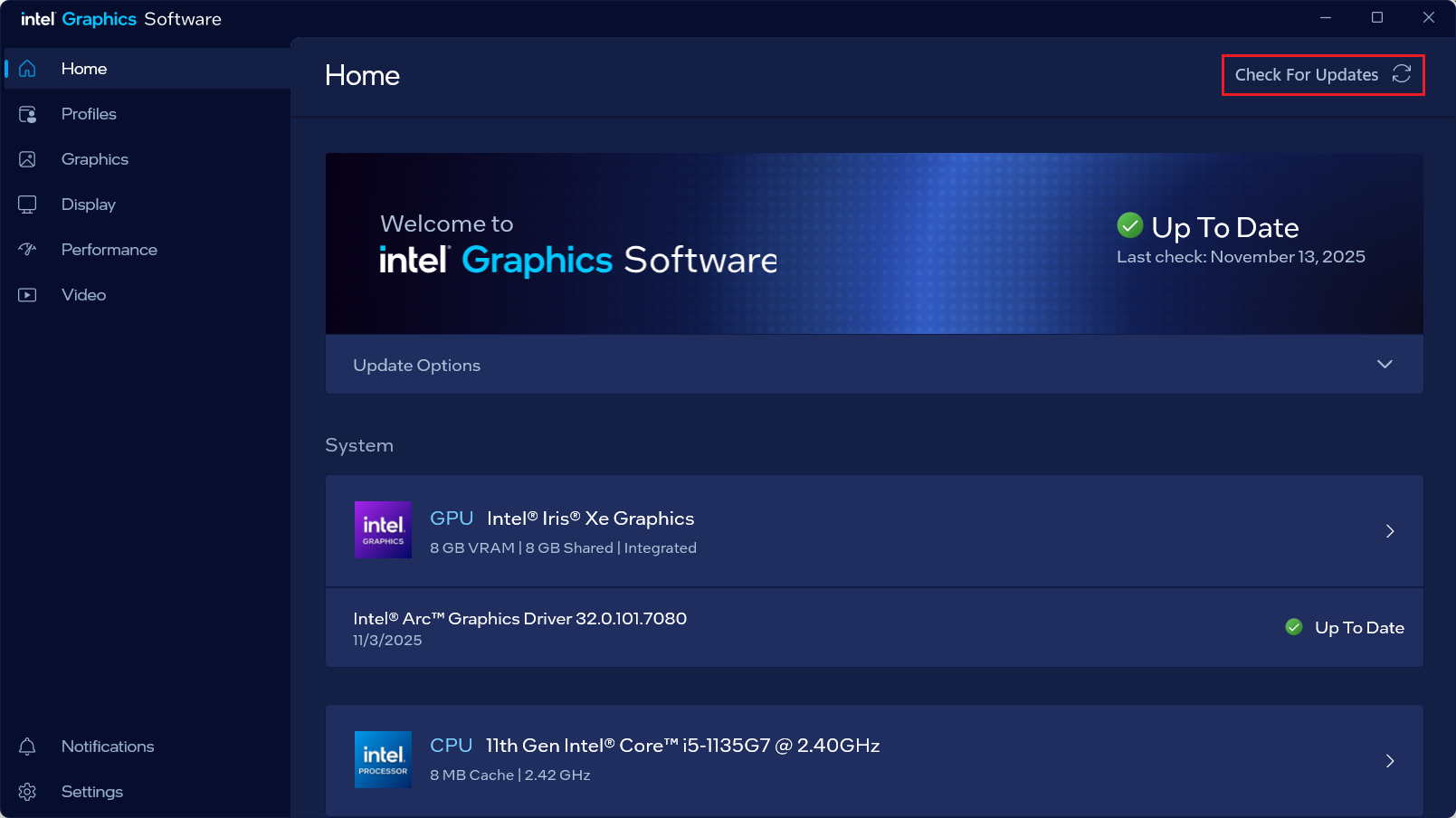

2.2 Install the latest driver manually

• For NVIDIA GPUs, download the latest Game Ready or Studio drivers from the NVIDIA website.
• For AMD GPUs, download the latest Adrenalin package from the AMD website.
• For Intel GPUs, download the latest Arc/UHD/Iris drivers from Intel.

2.3 Clean-install GPU drivers

• Use DDU (Display Driver Uninstaller) in Safe Mode to remove existing drivers.
• Reboot and install the latest drivers fresh.
• Verify if ShellExperienceHost.exe stabilizes in Task Manager.

3. Check Background Apps Causing Excessive UI Rendering

Some applications, especially those tied to desktop customization or wallpaper cycling, can indirectly trigger ShellExperienceHost.exe into overworking. This section focuses on identifying and limiting those triggers.

3.1 Disable unnecessary background apps

• Open Settings > Apps > Installed apps (or Apps & features on some builds).
• Review apps that run in the background.
• Turn off background permissions for apps you don’t need running constantly.

3.2 Check UWP apps for misbehavior

• In Task Manager, go to the App history tab.
• Observe CPU and resource usage patterns for Store apps.
• Uninstall or reset suspicious UWP apps that show abnormal usage.

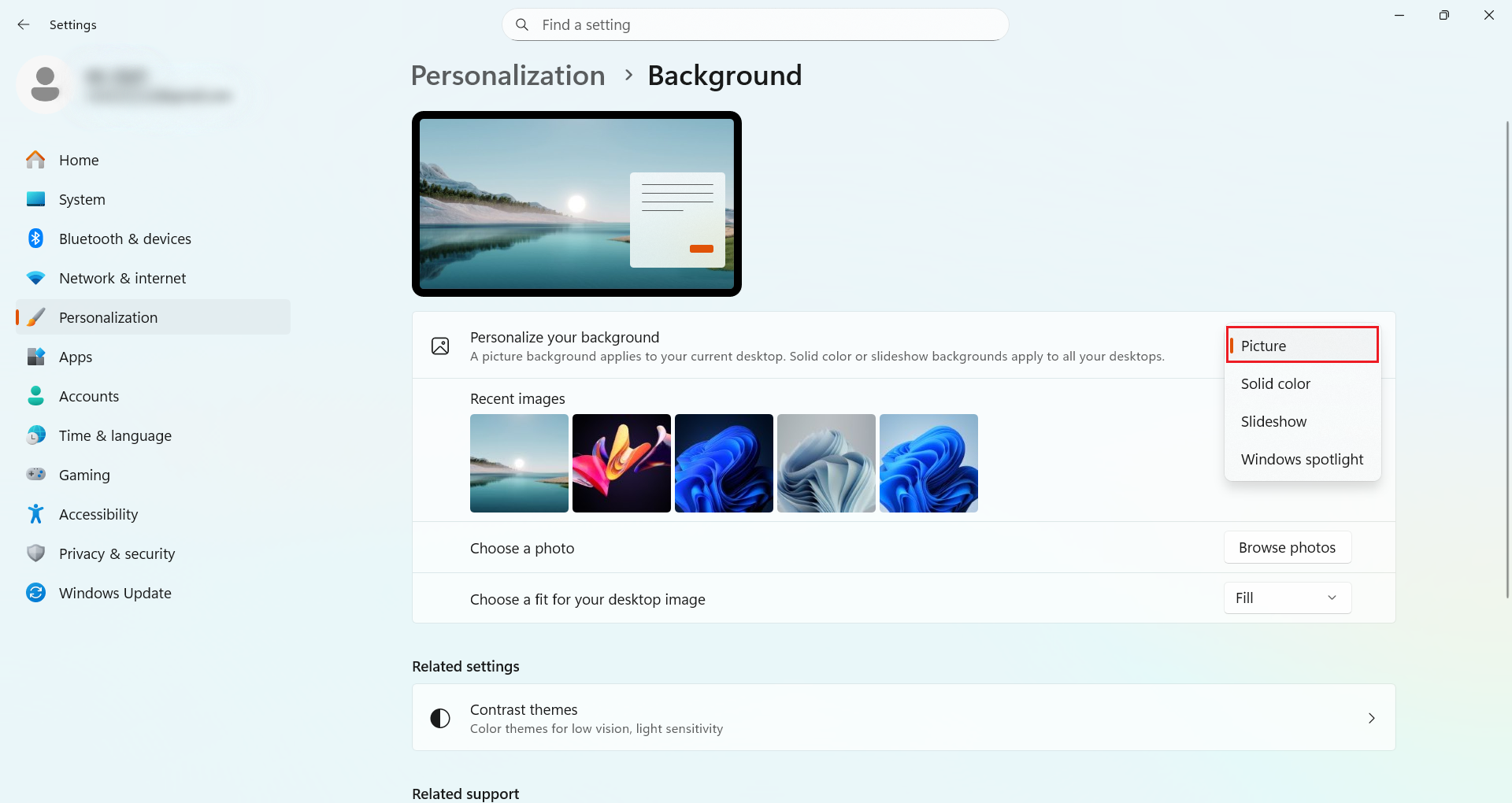

3.3 Disable dynamic backgrounds

• Go to Settings > Personalization > Background.
• Switch from slideshow/video to a static Picture.

4. Scan for System File Corruption

If Windows components tied to the UI become damaged, ShellExperienceHost.exe may behave unpredictably. These diagnostic tools repair corrupted system files that could be feeding the issue.

4.1 Run System File Checker (SFC)

• Open Command Prompt as Administrator.
• Run the following command:

sfc /scannow

4.2 Run DISM repair if SFC finds issues

• If SFC reports issues it cannot fix, run:

DISM /Online /Cleanup-Image /RestoreHealth

4.3 Reboot and test again

• After DISM completes, restart your PC.
• Monitor ShellExperienceHost.exe usage in Task Manager.

5. Look for Problematic Scheduled Tasks or Startup Items

Startup entries and scheduled tasks can repeatedly trigger UI redraws or settings sync events. This section ensures no background process is unintentionally stressing the UI subsystem.

5.1 Disable startup apps

• Open Task Manager and go to the Startup apps tab.
• Disable unnecessary entries, especially those related to UI customization or overlays.

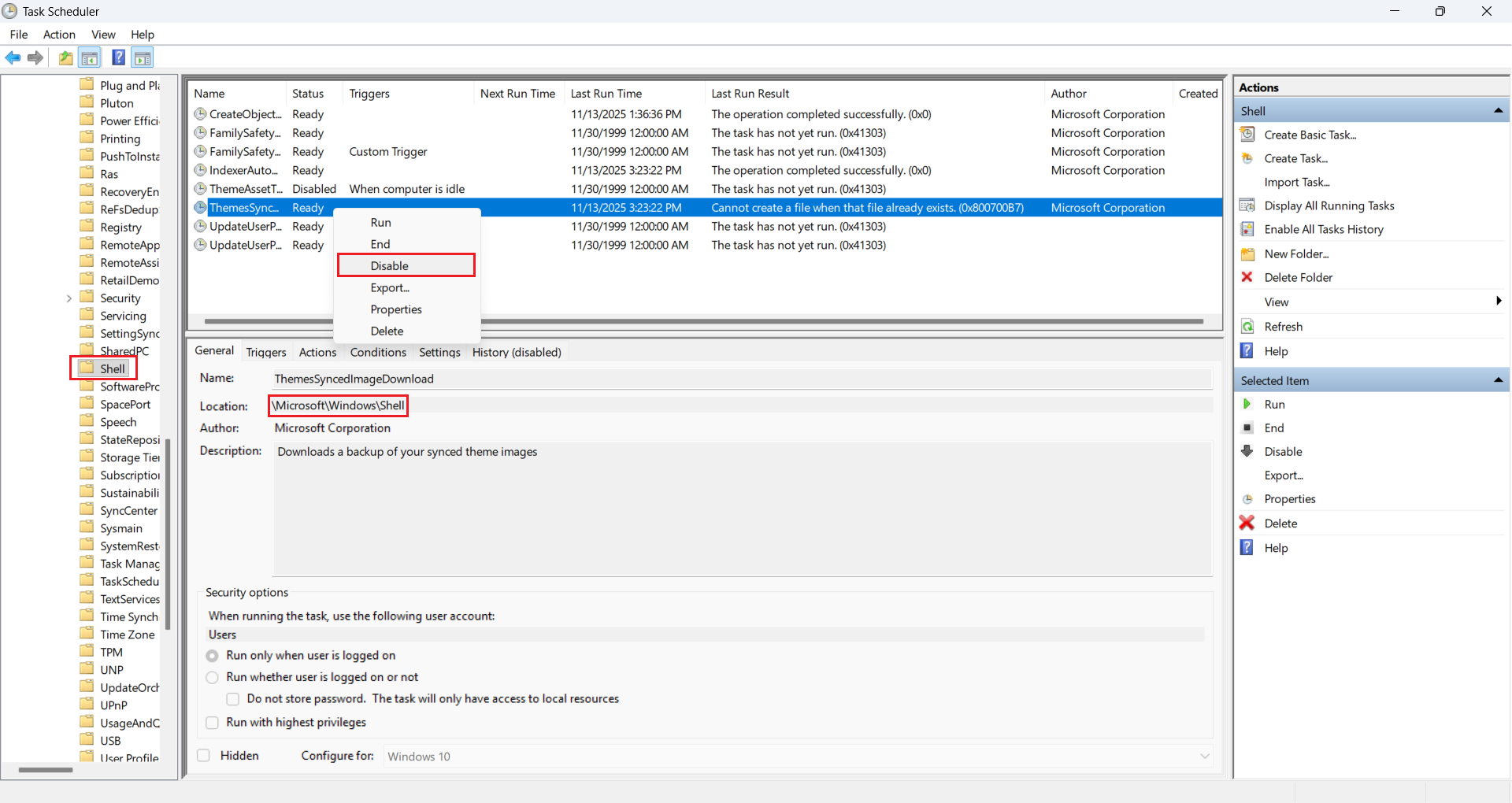

5.2 Audit scheduled tasks

• Open Task Scheduler.
• Navigate to:
  • Task Scheduler Library > Microsoft > Windows > Shell
  • Task Scheduler Library > Microsoft > Windows > Explorer
• Look for tasks that run extremely frequently or appear corrupted.
• Disable or adjust problematic tasks (only if you understand what they do).

6. Create a New User Profile to Isolate Profile Corruption

User profile corruption is a very common yet often overlooked cause of ShellExperienceHost.exe misbehavior. This step helps determine whether the issue is system-wide or isolated to one profile.

• Go to Settings > Accounts > Family & other users.
• Create a new local account with standard or administrator rights.
• Log into the new account and perform your normal workflow.
• Check ShellExperienceHost.exe usage in Task Manager.

If the issue does not appear in the new profile, the original profile likely contains corrupt UI settings or registry keys. In that case, consider migrating your data to the new profile.

Validation and Testing

Once you’ve applied the fixes, it’s important to verify that the system has returned to normal behavior. This ensures the issue is fully resolved and not simply suppressed temporarily.

You should see:

• CPU usage for ShellExperienceHost.exe drop to approximately 0–1% when the system is idle.
• Memory usage maintain roughly 30–150 MB under normal load.
• Smooth taskbar, Start menu, and notification animations.
• No sudden spikes during wallpaper transitions or app launches.

Troubleshooting tips:

• If usage spikes only during wallpaper changes, dynamic themes are likely the culprit.
• If usage spikes alongside GPU load, review and update your graphics drivers.
• If usage spikes persist only on one account, consider moving to a new user profile.

Security Hardening

While Windows Shell Experience Host itself isn’t malicious, implementing a few hardening measures helps reduce the chance of future UI-related issues. These steps also improve overall system stability.

• Install all cumulative Windows updates regularly.
• Avoid third-party theme patchers or deep UI tweaks that replace system files.
• Keep GPU drivers updated to the latest stable release.
• Avoid installing untrusted Windows Store apps or unknown desktop utilities.
• Use a reputable EDR/antivirus solution to stop malicious apps from manipulating the UI layer.

Conclusion

ShellExperienceHost.exe is a legitimate Windows component, but it can consume high CPU or memory when system configurations, themes, or drivers malfunction. By following this layered troubleshooting guide—from quick triage to deeper system repairs—you can restore normal performance and prevent repeat issues.

In most cases, the root cause relates to corrupt themes, outdated GPU drivers, or damaged system files, all of which are straightforward to address with the steps above. With proper maintenance and a few security-hardening practices, ShellExperienceHost.exe should remain a low-profile, low-resource background component.
