Windows Modules Installer Worker (TiWorker.exe / TrustedInstaller) High CPU Problem Analysis

Windows Modules Installer Worker (process name TiWorker.exe) and the TrustedInstaller service are core parts of Windows servicing. They install, modify, and remove Windows Updates, optional features, device driver packages, and language packs. On healthy systems, they run during maintenance windows and then go quiet. When something’s off—damaged component store, stuck update transaction, throttled I/O, or third-party interference—TiWorker can pin a CPU core for long stretches, drain battery, and keep fans spinning.

This guide explains what’s happening under the hood, how to triage quickly, and the exact remediation steps that fix the majority of cases on Windows 10 and 11 without compromising update integrity. You’ll learn how to verify the process is legitimate, reset the update pipeline safely, repair the servicing stack, and validate the outcome with logs and command outputs. Where aggressive options exist (like removing superseded components), we clearly flag trade-offs so you can choose the least disruptive fix.

---

Quick Triage

1. Verify it’s the real process (not malware)

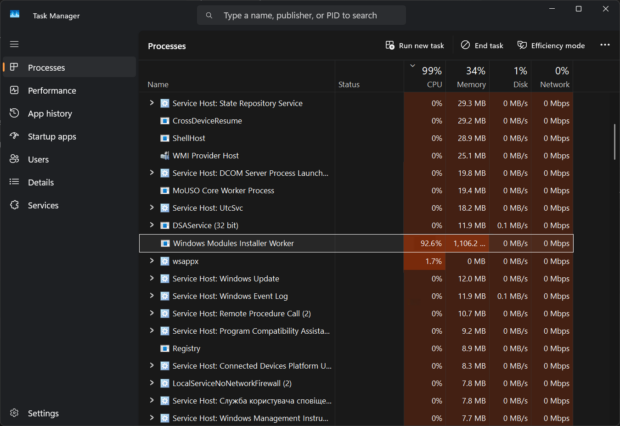

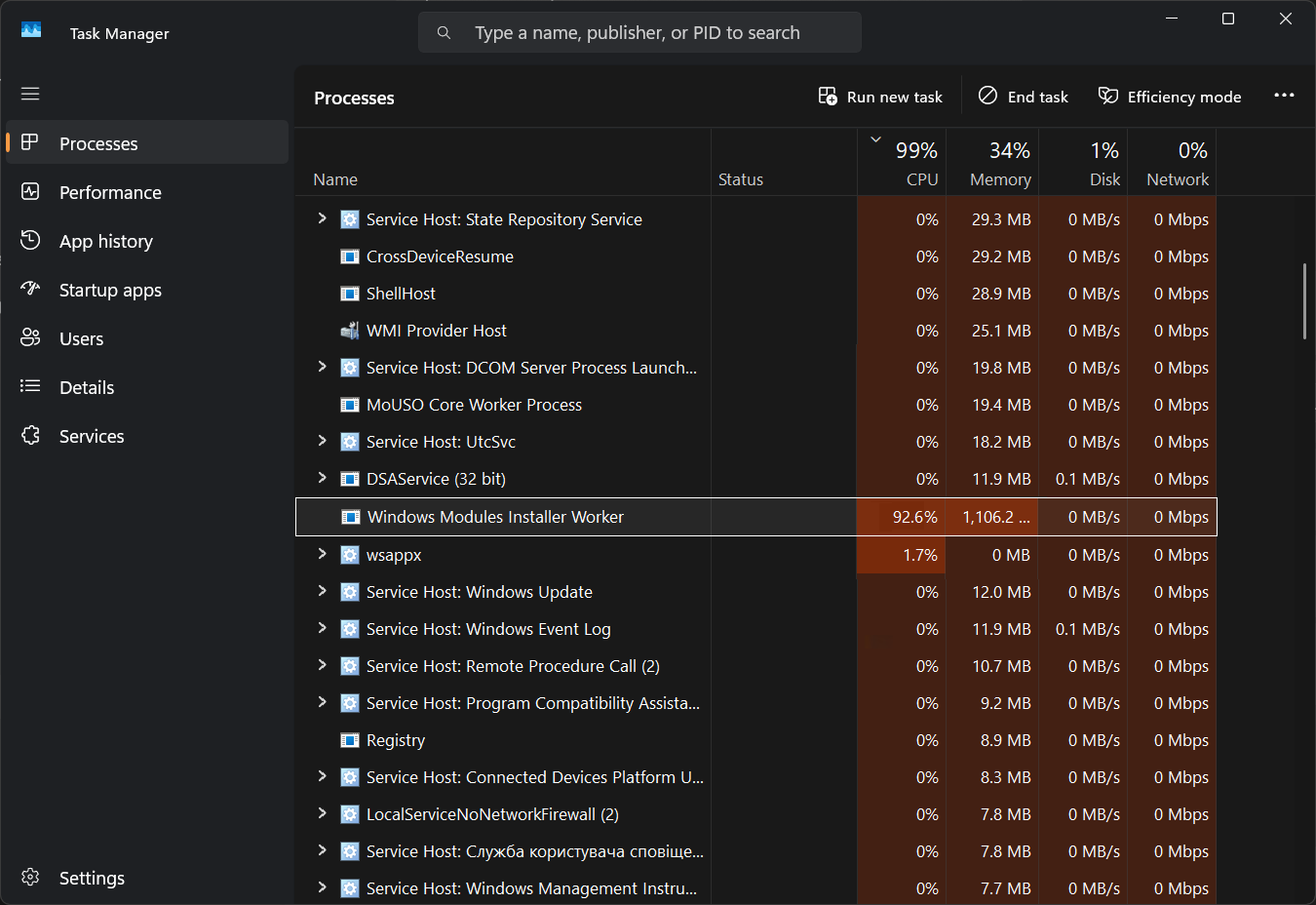

1.1 Open Task Manager → Details and locate TiWorker.exe or TrustedInstaller.exe.

1.2 Right-click the process → Open file location. Legitimate paths are typically:

• C:\Windows\servicing\TiWorker.exe
• C:\Windows\servicing\TrustedInstaller.exe

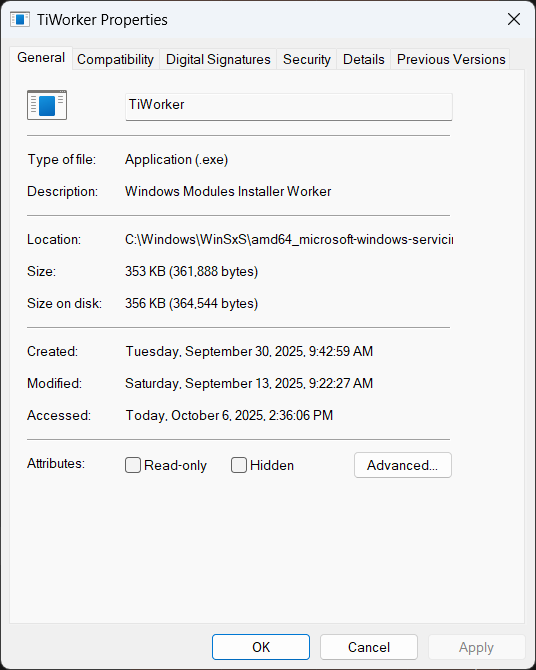

1.3 Right-click the file → Properties → Digital Signatures and confirm it’s signed by Microsoft Windows.

1.4 If the path is outside %SystemRoot%\servicing or the signature is missing/invalid, perform a full malware scan before continuing.

2. Decide whether to let it finish

• If you recently installed updates or enabled features, high CPU for 10–30 minutes can be normal.
• Connect AC power, keep the machine idle, and allow Automatic Maintenance to complete.
• If CPU remains high beyond a reasonable window or returns after every reboot, proceed with remediation.

3. Try the safe “first aid” actions

• Restart the device once to clear transient servicing jobs.
• Run Settings → System → Troubleshoot → Other troubleshooters → Windows Update → Run.
• Pause updates for a short period (e.g., 7 days) to stop repeated retries while you repair the stack.
• Ensure at least 8–10 GB free disk space on the system partition; low space causes repeated failures.

---

Prerequisites

1. Access and environment

• You must be an administrator on the affected machine.
• Perform steps in an elevated Windows Terminal, PowerShell, or Command Prompt.

2. Safe-ops guidance

• Create a System Restore Point or a quick system image if available.
• If using a laptop, connect to AC power and a stable network.

3. Tools you’ll use

• Built-in: DISM, SFC, Windows Update Troubleshooter, Event Viewer, Resource Monitor.
• Optional: Process Explorer (for thread stacks) and Procmon if deep analysis is needed.

---

Step-by-Step Guide

1. Confirm servicing activity and what’s stuck

A quick look at Windows Update status and logs will tell you whether TiWorker is busy with a legitimate task or looping on failures.

• Open Settings → Windows Update and check for “Installing,” “Pending install,” or repeated error codes.
• Launch Event Viewer → Applications and Services Logs → Microsoft → Windows → Servicing → Operational for servicing events and failures.
• On Windows 10/11, run PowerShell (Admin): Get-WindowsUpdateLog to generate %USERPROFILE%\Desktop\WindowsUpdate.log and scan for recent errors.

2. Reset the Windows Update pipeline (safe baseline)

2.1 Open Windows Terminal (Admin) and stop key services:

This pauses update activity so cache folders can be safely renamed.

• net stop wuauserv
• net stop bits
• net stop cryptsvc
• net stop msiserver

2.2 Rename update caches (they’ll be recreated):

Old caches often contain corrupt metadata or incomplete payloads; renaming forces a clean rebuild.

• ren %SystemRoot%\SoftwareDistribution SoftwareDistribution.old
• ren %SystemRoot%\System32\catroot2 catroot2.old

2.3 Clear BITS job database (optional if errors reference BITS):

Use this only when logs mention stuck Background Intelligent Transfer jobs.

• del "%ALLUSERSPROFILE%\Application Data\Microsoft\Network\Downloader\qmgr*.dat"

2.4 Start services again:

Bring the servicing stack back online to allow a fresh detection cycle.

• net start cryptsvc
• net start bits
• net start msiserver
• net start wuauserv

2.5 Reboot and re-check CPU usage.

A restart clears handles and finalizes changes; reevaluate TiWorker after a few idle minutes.

• After restart, allow several minutes of idle time and observe TiWorker.exe in Task Manager.

3. Repair the component store and system files

3.1 Run DISM health restore (internet/WSUS required):

DISM repairs the WinSxS component store that TrustedInstaller relies on.

• DISM /Online /Cleanup-Image /RestoreHealth

3.2 Run System File Checker:

SFC verifies and replaces corrupted system binaries that DISM depends on.

• sfc /scannow

3.3 If DISM can’t download sources, use a mounted ISO:

Point DISM to a known-good image when network or WSUS sources fail.

• DISM /Online /Cleanup-Image /RestoreHealth /Source:WIM:D:\sources\install.wim:1 /LimitAccess

3.4 Reboot and recheck:

Apply changes and confirm the CPU settles after the servicing cycle.

• Restart Windows and verify CPU returns to idle after a short post-boot settling period.

4. Analyze and clean WinSxS (with trade-offs)

4.1 Check whether cleanup is recommended:

This shows reclaimable size and whether component cleanup may shorten future TiWorker runs.

• DISM /Online /Cleanup-Image /AnalyzeComponentStore

4.2 Perform safe component cleanup:

Removes superseded components without affecting your ability to uninstall the latest updates.

• DISM /Online /Cleanup-Image /StartComponentCleanup

4.3 Optional and irreversible cleanup (cannot uninstall current updates):

Use only if storage pressure is severe and rollbacks are not required.

• DISM /Online /Cleanup-Image /StartComponentCleanup /ResetBase

4.4 Reboot and observe TiWorker during the next maintenance cycle:

Let Windows complete background optimization on AC power.

• Leave the device idle on AC power to let background optimization complete.

5. Clear pending update operations

5.1 Check logs for pending transactions:

A stuck pending.xml can keep TiWorker busy at every boot.

• Look for references to pending.xml or transaction failures in Servicing → Operational and WindowsUpdate.log.

5.2 Reset pending operations safely:

Only rename the file—do not delete—to allow recovery if needed.

• Stop services as in 2.1.
• Go to %SystemRoot%\WinSxS\ and locate pending.xml.
• Rename to pending.xml.bak (do not delete).
• Start services and reboot.

6. Rebuild the Windows Update Agent state (more aggressive reset)

6.1 Script the reset in elevated PowerShell:

This is a deeper reset for environments with repeated detection/install loops.

• Stop services (wuauserv, bits, cryptsvc, msiserver).
• Remove SoftwareDistribution and catroot2 (rename first; delete the .old folders after updates succeed).
• Re-register components only if logs show registration errors (avoid mass re-registration on modern Windows).
• Start services and reboot.

6.2 Verify a clean installation cycle:

A full scan confirms the pipeline is healthy again.

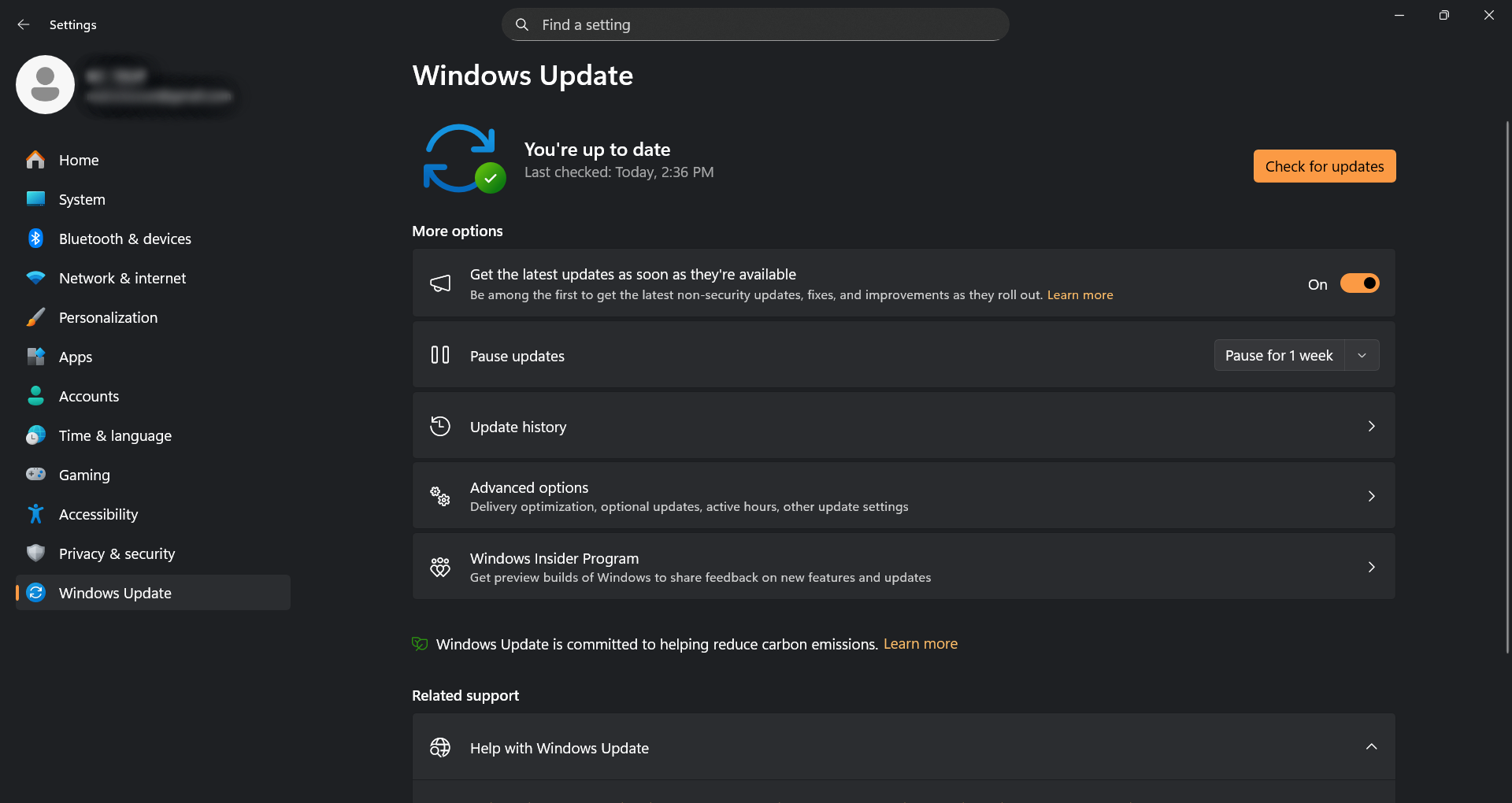

• Open Settings → Windows Update → Check for updates and confirm completion without errors.

7. Tune Automatic Maintenance and update timing

Scheduling maintenance for off-hours reduces perceived spikes without risking patch hygiene.

• Open Control Panel → Security and Maintenance → Change maintenance settings and set a time when the PC is idle and powered.
• If you’re on metered or constrained networks, enable a Metered connection temporarily or set Active hours to avoid work-time spikes.
• For Pro/Enterprise, use Group Policy → Windows Update for Business to defer quality/feature updates to calmer maintenance windows.

8. Rule out third-party interference

Security tools and “optimizers” sometimes intercept update traffic or files, slowing TrustedInstaller.

• Temporarily disable or uninstall update-hooking software (third-party AV with HTTP scanning, system “cleaners,” driver updaters).
• Ensure the Windows Defender platform and engine are current; outdated security platforms can slow component servicing.
• Reboot and test again.

9. Advanced: Inspect threads if CPU remains pegged

When TiWorker stays hot, thread stacks can reveal the specific bottlenecking module.

• Use Process Explorer: right-click TiWorker.exe → Properties → Threads to identify hot threads.
• If CLR/.NET or specific DLLs show repeatedly, repair or update that component (e.g., .NET repair tool, Visual C++ redistributables).
• Collect an ETW trace (WPR/WPA) focused on CPU sampling to pinpoint bottlenecks in the servicing stack.

10. Last resort: In-place upgrade repair (keeps data and apps)

This non-destructive reinstall refreshes the servicing stack and component store.

• Download a matching Windows ISO, mount it, and run Setup.exe → Upgrade this PC now.
• Choose Keep personal files and apps.
• This refreshes the component store and servicing stack while preserving your environment.

---

Validation and Testing

1. Establish a baseline

Measure idle behavior after fixes to ensure TiWorker returns to normal.

• Open Task Manager and Resource Monitor; note CPU for TiWorker.exe and TrustedInstaller.exe at idle for 10–15 minutes.
• Expect near-idle CPU (typically 0–5% on modern CPUs) outside active update windows.

2. Confirm update health

Healthy servicing logs indicate the pipeline is no longer looping.

• Run Get-WindowsUpdateLog and verify the last session completed without errors.
• Check Event Viewer → Microsoft → Windows → Servicing → Operational and WindowsUpdateClient for successful completion events.
• In Settings → Windows Update, run Check for updates and confirm that install/cleanup phases complete.

3. Validate component store integrity

A clean WinSxS prevents TiWorker from reprocessing failed components.

• Execute DISM /Online /Cleanup-Image /CheckHealth (quick) or /ScanHealth (deeper) to ensure no remaining corruption.
• Re-run AnalyzeComponentStore to confirm cleanup status and reclaimable sizes look reasonable.

---

Security Hardening

1. Keep servicing stack and baseline clean

Staying current minimizes heavy catch-up work by TiWorker.

• Install quality updates regularly; avoid pausing for long periods.
• Do not disable the Windows Modules Installer (TrustedInstaller) service; disabling it breaks security patching.

2. Schedule maintenance intelligently

Off-hours maintenance avoids contention with user workloads.

• Set Automatic Maintenance to off-hours and keep devices on AC at that time.
• For fleets, use WSUS/Intune policies to stagger installation and reduce contention.

3. Avoid risky “optimizer” tweaks

Unvetted cleanup tools routinely corrupt the component store.

• Skip registry “tuning” and third-party WinSxS cleaners; they often corrupt the component store.
• Prefer DISM’s built-in cleanup with clear, reversible steps.

4. Monitor post-patch behavior

A brief check after Patch Tuesday can catch regressions early.

• After Patch Tuesday, sample CPU at idle for a few days to confirm stability.
• Track repeated failures by correlating update KB IDs with error codes in logs.

---

Conclusion

High CPU from TiWorker.exe or TrustedInstaller typically signals active servicing or a clogged update pipeline. By validating the process authenticity, resetting the update caches, repairing the component store with DISM/SFC, and letting Automatic Maintenance finish on a reliable schedule, you eliminate the vast majority of performance spikes without sacrificing patch hygiene. Keep servicing components healthy, avoid risky tweaks, and use logs to verify outcomes—your CPU (and users) will thank you.

---
