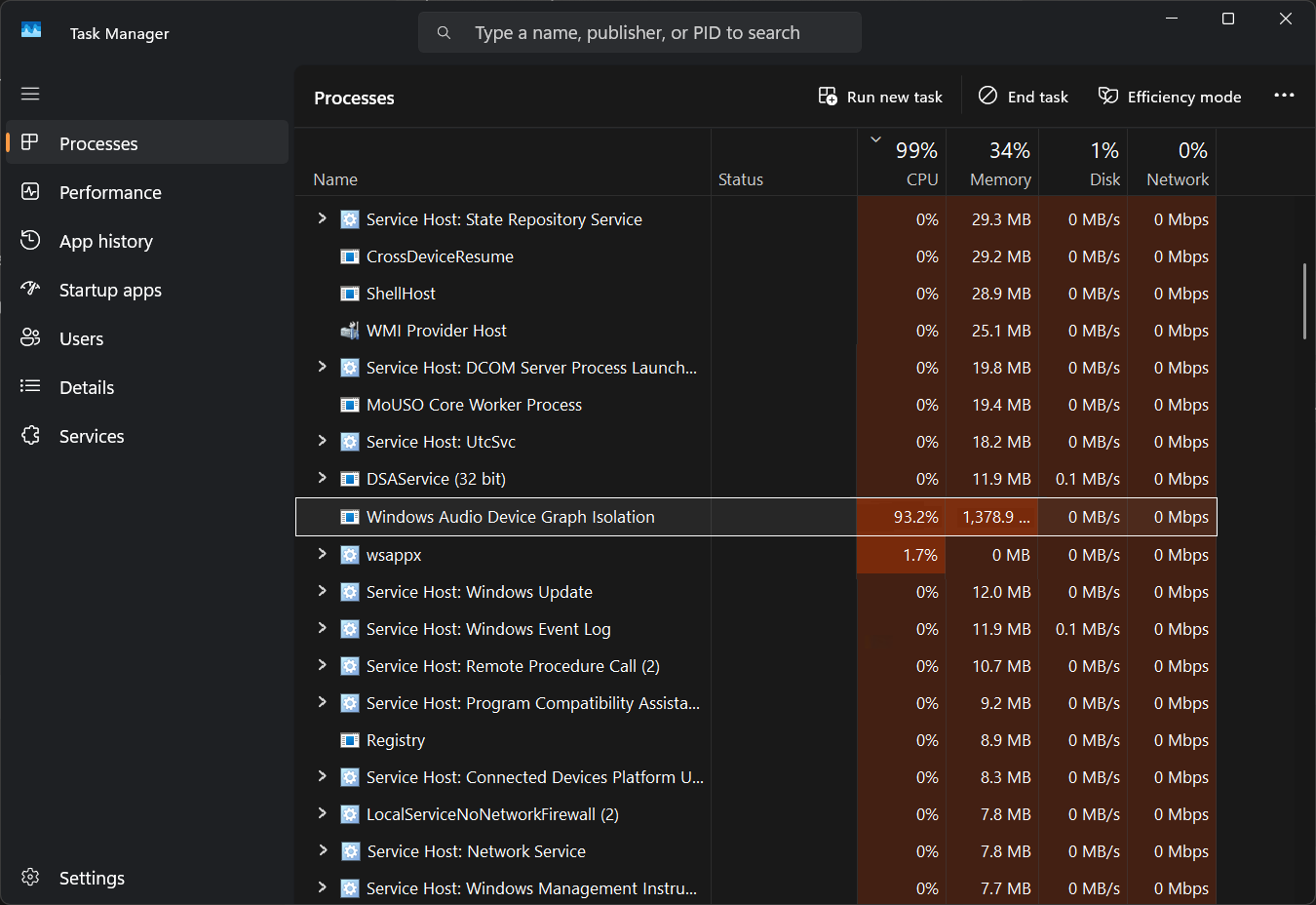

Windows Audio Device Graph Isolation (audiodg.exe) High CPU and Memory Usage: Six Ways to Fix the Problem

Initial Diagnostics and Fast Remedies

Before diving into detailed steps, start with these quick checks to see if the issue can be fixed immediately:

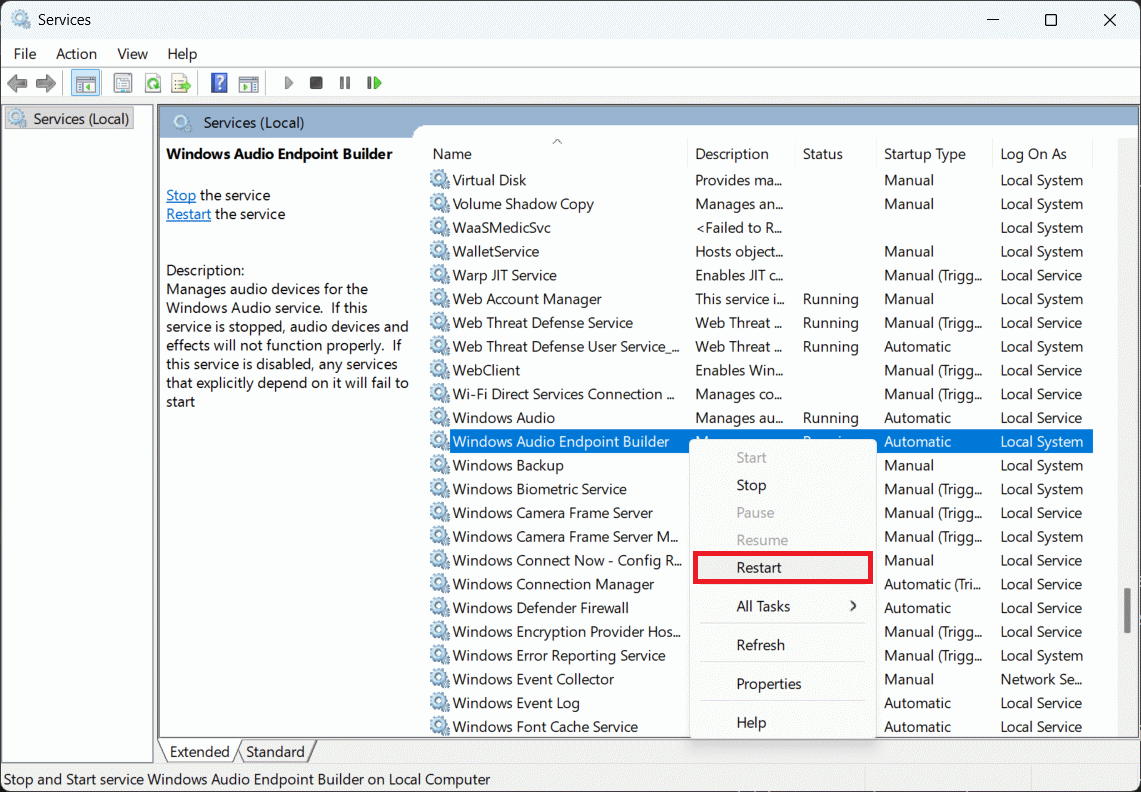

1. Restart the Windows Audio service
   • Press Win + R, type services.msc, and press Enter.
   • Locate Windows Audio and Windows Audio Endpoint Builder.
   • Right-click each and select Restart.
   • Observe whether CPU or memory usage by audiodg.exe drops.
2. Reboot your PC
   • Temporary memory leaks in the audio driver stack can accumulate over time.
   • Restarting clears them and resets audiodg.exe behavior.
3. Disconnect external audio devices
   • Remove USB DACs, Bluetooth headsets, or HDMI audio connections one by one.
   • If CPU usage drops after removing one, that device or its driver is the likely cause.
4. Run a quick malware scan
   • Open Windows Security → Virus & threat protection → Quick scan.
   • If the file path of audiodg.exe differs from C:\Windows\System32\audiodg.exe, it may be malicious.

If these actions reduce CPU or RAM usage, you can skip the deeper troubleshooting. Otherwise, continue below.

Prerequisites

• Administrative privileges on your Windows account.
• Access to Device Manager and Control Panel → Sound settings.
• Optional: A system restore point, in case you need to revert driver changes.
• Optional tools: Process Explorer (Microsoft Sysinternals) to inspect the audiodg.exe process in detail.

Step-by-Step Troubleshooting and Fixes

1. Disable Audio Enhancements

Audio enhancements add reverb, equalization, and spatial effects — but they’re a common source of high CPU usage.

• 1.1 Open Sound Settings:
  • Right-click the speaker icon in the taskbar → Sounds → Playback tab.
• 1.2 Access Device Properties:
  • Select your active playback device (usually “Speakers” or “Headphones”).
  • Click Properties → Enhancements tab.
• 1.3 Turn Off Enhancements:
  • Check Disable all enhancements or manually uncheck all boxes.
  • Click Apply, then OK.
• 1.4 Reboot and Monitor:
  • Open Task Manager and observe CPU/memory usage under audiodg.exe while playing audio.

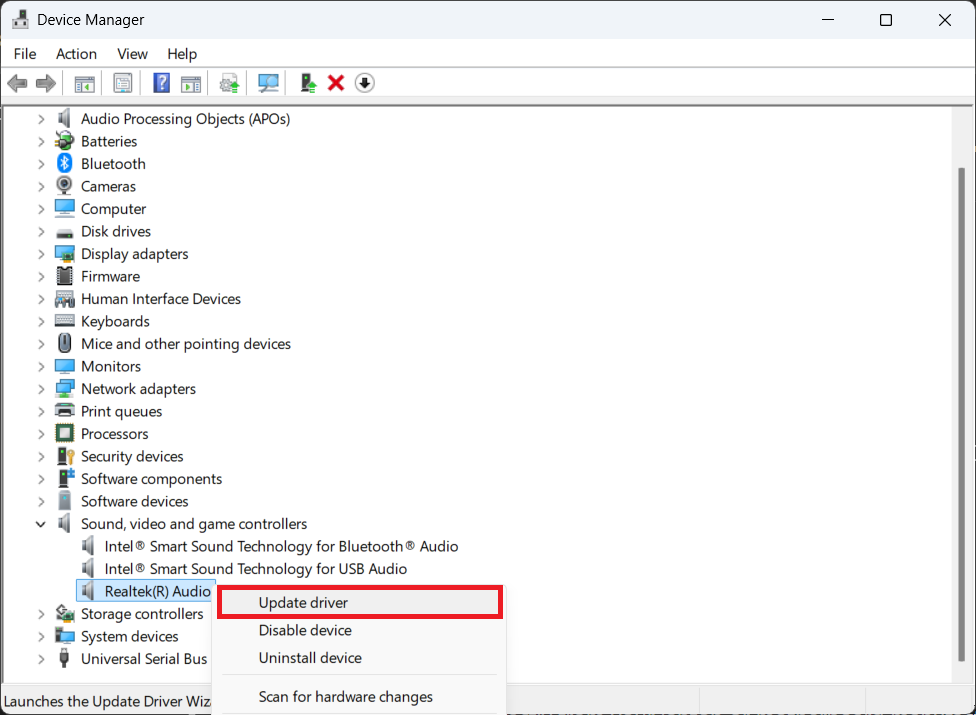

2. Update or Roll Back Audio Drivers

Driver conflicts are another major cause of resource spikes in audiodg.exe.

• 2.1 Update drivers:
  • Press Win + X → Device Manager → Sound, video, and game controllers.
  • Right-click your sound card (e.g., Realtek High Definition Audio, NVIDIA High Definition Audio) → Update driver → Search automatically.
• 2.2 Roll back driver (if the issue began after an update):
  • In Device Manager, open the Properties → Driver tab.
  • Click Roll Back Driver, if available.
• 2.3 Reinstall drivers manually (advanced):
  • Download the latest driver directly from your laptop or motherboard manufacturer’s support page.
  • Uninstall the old one via Device Manager → Uninstall device, then install the new package.

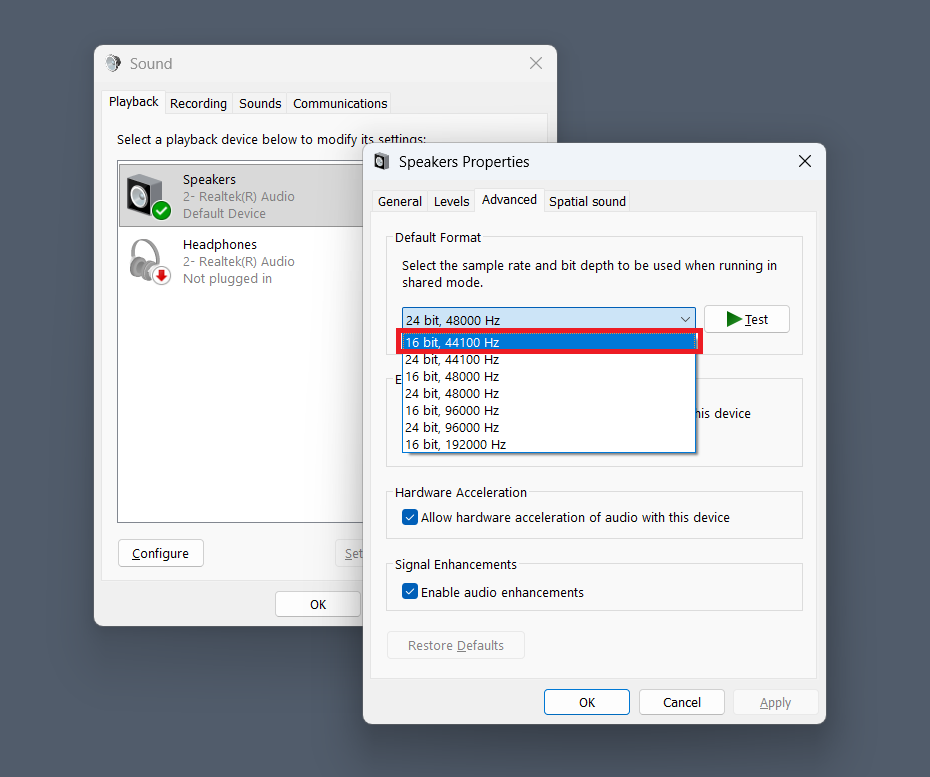

3. Adjust Sample Rate and Bit Depth

High sampling rates can strain audio processing, especially on low-power systems.

• 3.1 Open Sound Settings → Playback → Properties → Advanced.
• 3.2 Under Default Format, select 16 bit, 44100 Hz (CD Quality).
• 3.3 Apply changes and test.
• 3.4 If the issue persists, try 24 bit, 48000 Hz, which some drivers handle more efficiently.

4. Isolate Third-Party Audio Software

If you have sound utilities like Nahimic, DTS Sound, or Dolby Audio, they may inject plugins into audiodg.exe.

• 4.1 Temporarily disable startup entries:
  • Press Ctrl + Shift + Esc → Startup tab.
  • Disable third-party audio software.
• 4.2 Restart the system and observe CPU usage.
• 4.3 If performance improves, keep the app disabled or update it to the latest version.

5. Adjust Audio Priority in Windows Registry (Advanced)

This method helps when audiodg.exe monopolizes CPU even when idle.

• 5.1 Open Registry Editor:
  • Press Win + R, type regedit, and press Enter.
• 5.2 Navigate to:

  HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows\CurrentVersion\Audio

• 5.3 Modify or create the following values:
  • Name: PerformancePriority
  • Type: DWORD (32-bit)
  • Value: 1 (default is usually 2 or 3; lower value reduces CPU priority)
• 5.4 Restart Windows Audio services or reboot the PC.

Note: Modifying registry keys incorrectly can affect system stability — always back up before editing.

6. Verify System Integrity and Configuration

If none of the above steps work, perform a health check of your system components.

• 6.1 Run System File Checker:

  sfc /scannow

  (Run in an elevated Command Prompt.)

• 6.2 Check for corrupted drivers:

  DISM /Online /Cleanup-Image /RestoreHealth

• 6.3 Update Windows:
  • Go to Settings → Windows Update → Check for updates.
  • Many audio driver and kernel fixes are distributed via cumulative updates.

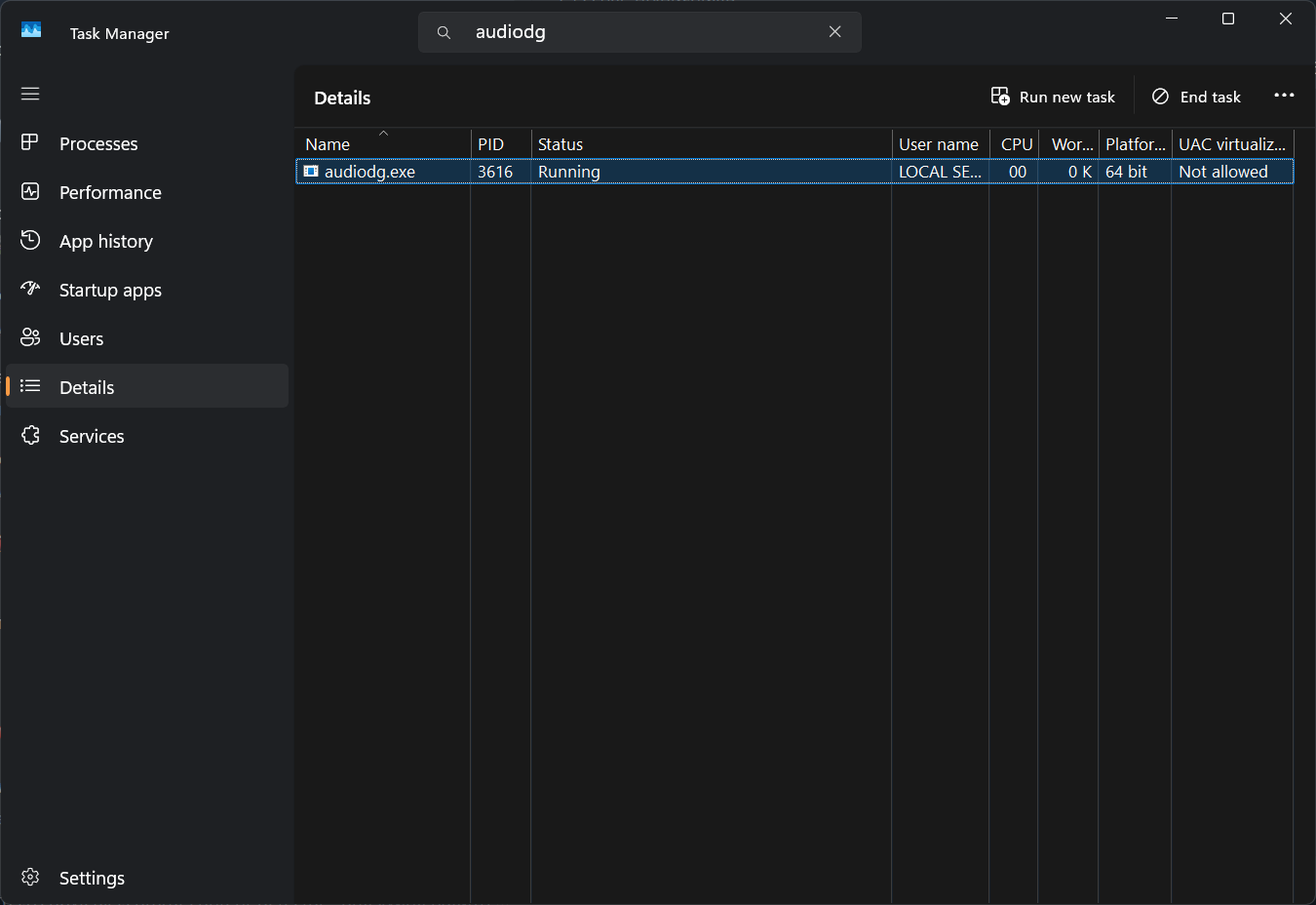

Validation and Monitoring

After applying fixes, confirm that audiodg.exe behaves normally:

• Open Task Manager → Details tab → audiodg.exe.
• Typical idle CPU usage should be below 2%, and memory under 50 MB during normal playback.
• If you’re using advanced tools like Process Explorer, check the Threads tab to identify any plugin DLLs still consuming resources.

Security Hardening and Prevention

• Keep audio drivers and Windows builds up to date.
• Avoid unnecessary third-party audio processing software.
• Regularly verify that audiodg.exe resides only in C:\Windows\System32.
• Use Windows Defender or reputable AV software to ensure the executable hasn’t been replaced by malware.
• Schedule routine driver audits (monthly) to detect outdated components.

Wrap-Up and Next Steps

High CPU or memory usage from Windows Audio Device Graph Isolation (audiodg.exe) typically indicates a software configuration issue rather than a hardware failure. By systematically disabling enhancements, managing drivers, and isolating third-party effects, you can resolve the problem without sacrificing audio quality. With preventive steps such as keeping drivers clean and avoiding unnecessary DSP utilities, your system will maintain efficient, stable sound performance long-term.
